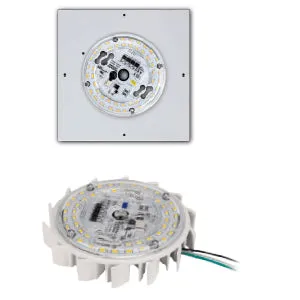

Advantage Environmental Lighting P213, P514 or P523 Circular LED Retrofit Kits/Arrays

Features

• UL 1598 Classified Retrofit Kit
• AC Driver-On-Board Technology
• Data Per NVLAP Accredited Laboratory
• TRIAC Dimmable to 5% (forward & reverse phase)
• Energy Star CSD
• 5 Year Warranty

Specifications

• Input voltage: 120VAC; 50/60Hz
• 13W, 14W, & 23W Models
• Available in 3000K or 4000K
• Constant current design
• High power factor > 0.98
• Estimated 50,000 hrs L70

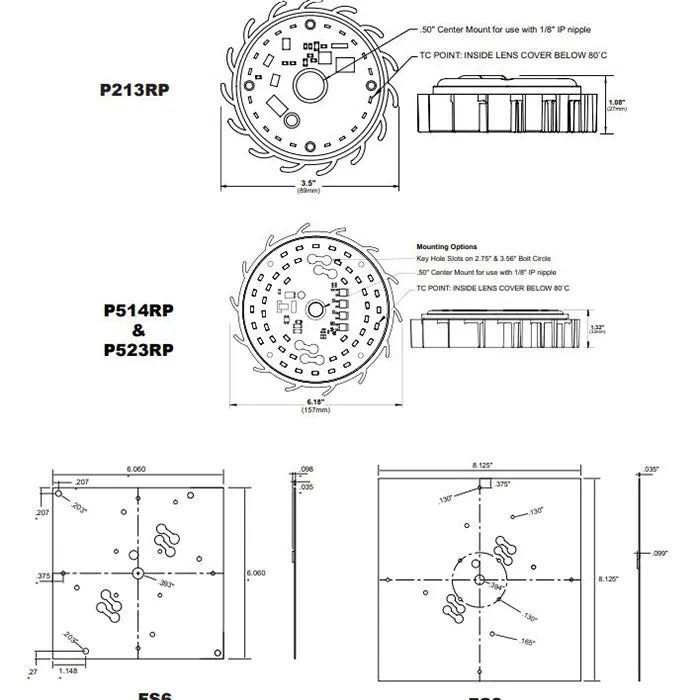

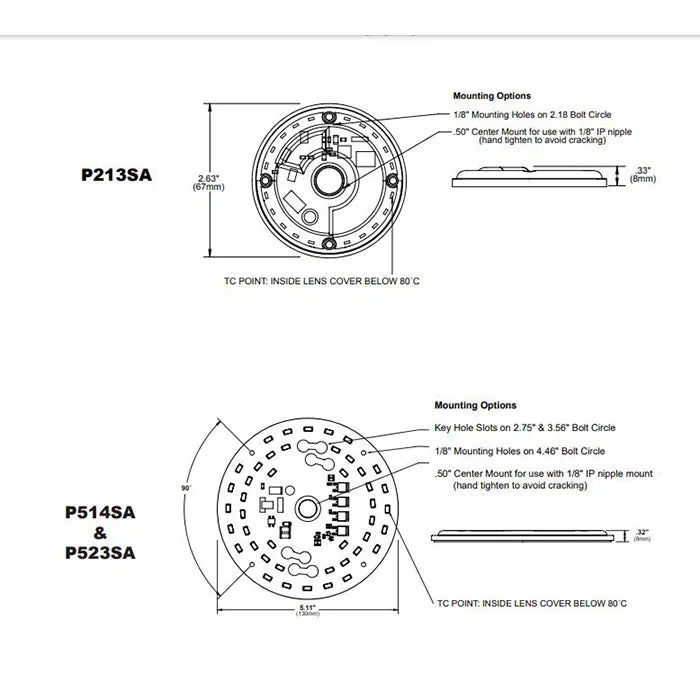

• Max lens temp. (Tc): 80°C (see diagram for Tc location)
• Optical grade polycarbonate lens
• On board line surge protection
• Standard mounting options for easy install w/ optional hardware
• Integrated powdercoated aluminum heat sink w/ ground wire
• Optional MOV ground surge protection
• 12" 18 AWG leads
• Retrofit Kits UL 1598 Classified
• Arrays UL file: E464765 certified under UL standard 8750
• FCC compliance Class B
