Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Current, Supply | 0.1 (10M Full Duplex), 0.09 (100M Full Duplex) A |
| For Use With | Control Panel, Ethernet I⁄O Modules |
| Mounting Type | Din Rail |
| Number of Ports | 5 Port |
| Operating Temperature | –30°C to 75°C |
| Port, Type | RJ45 |
| Primary Type | Ethernet Switch |
| Protocol Type | 10/100 Mbit/s |
| Series | |
| Special Features | Automatic MDI ; MDI-X Crossover for Plug and Play ; Store and Forward Architecture |
| Supply Voltage | 10-30 VDC |
| Type | Unmanaged Switch |
Overview

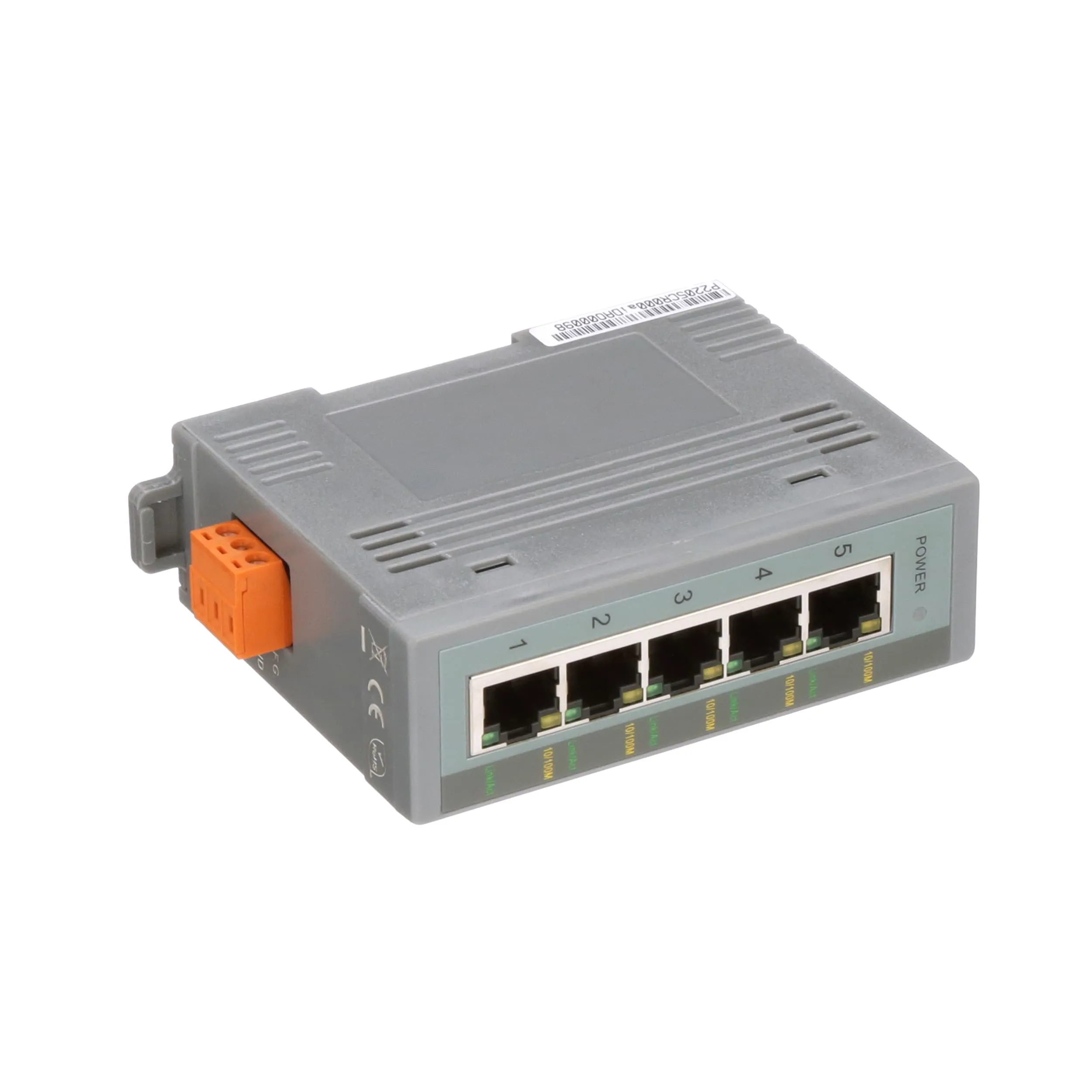

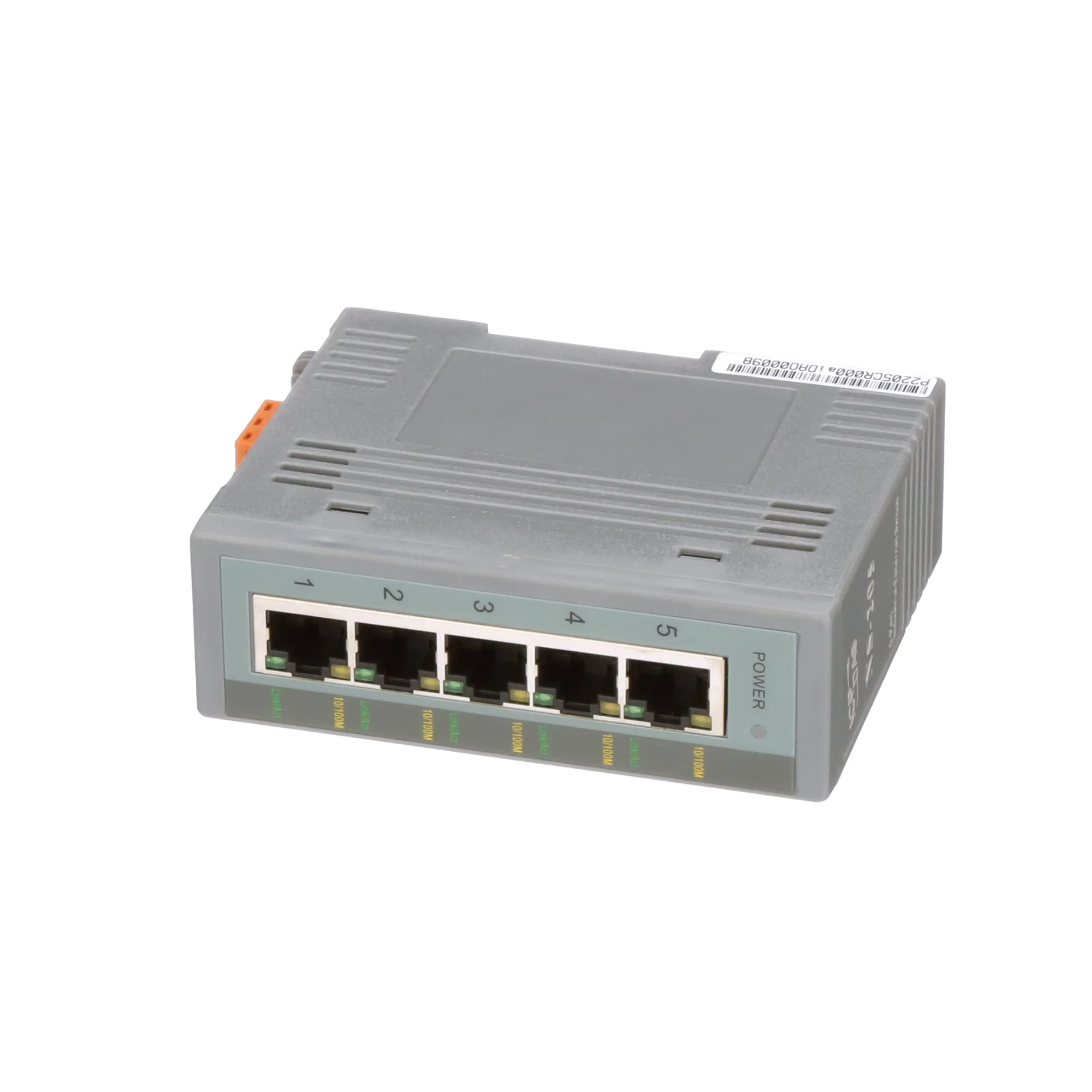

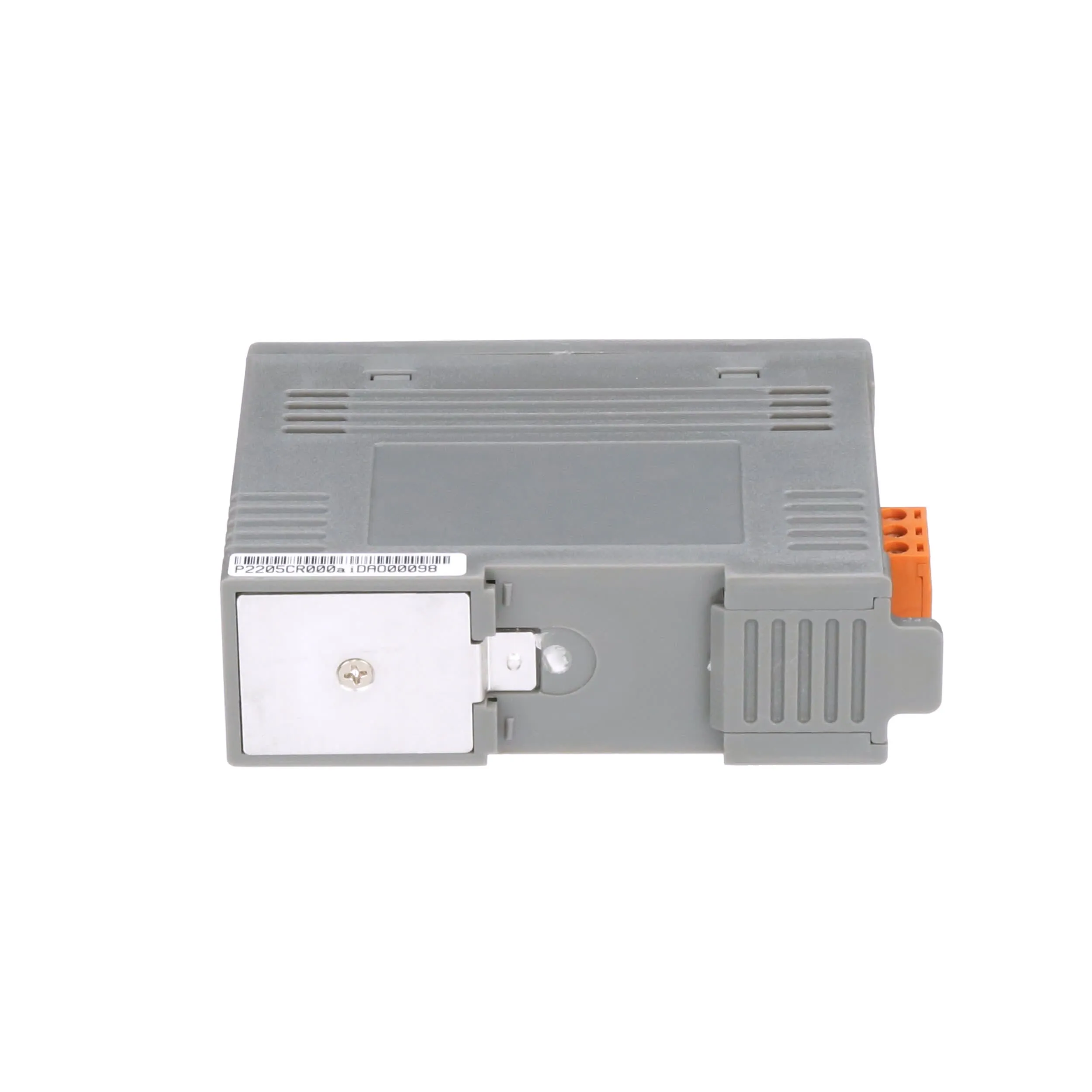

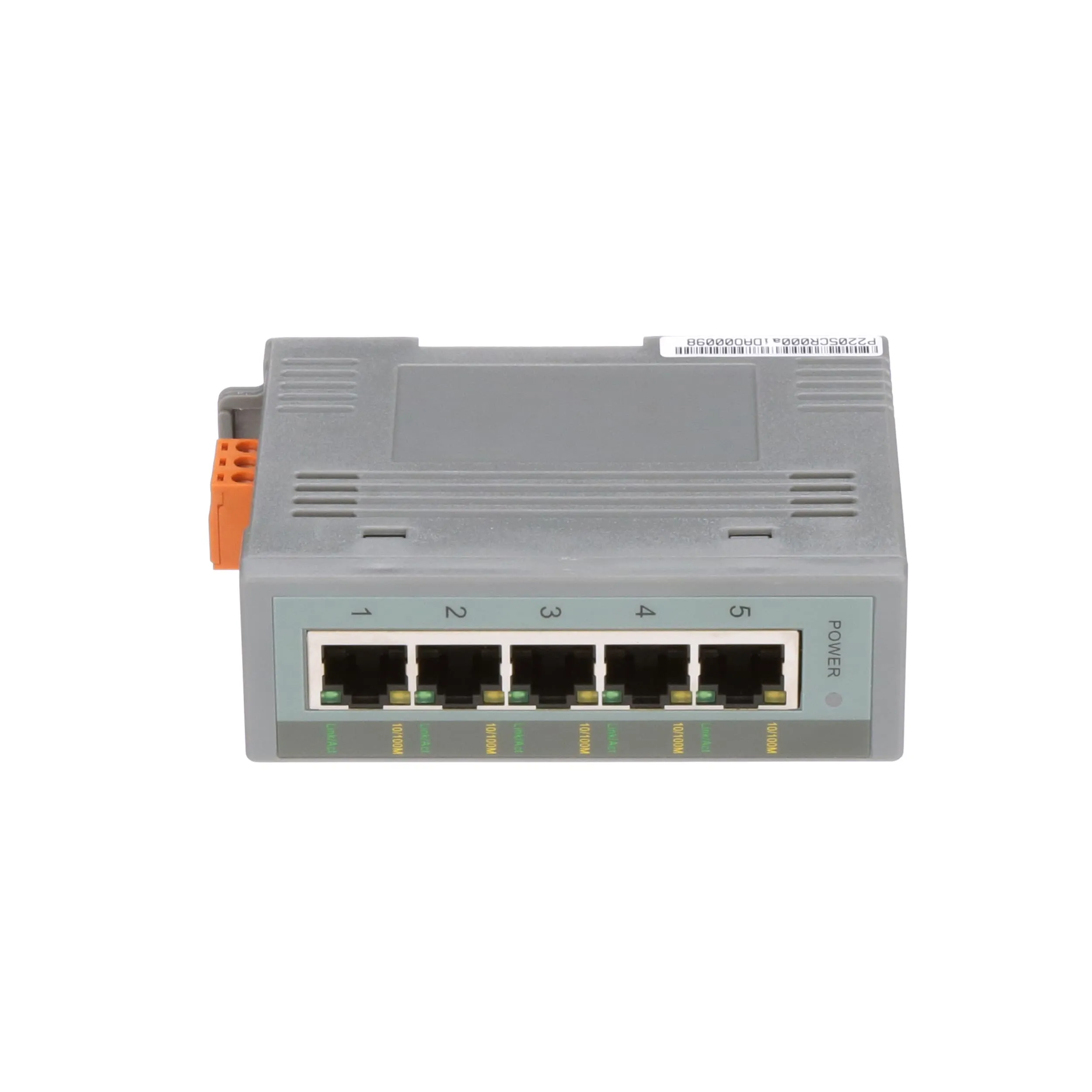

Unmanaged 5-Port Industrial Ethernet Switch with Din Rail Mount. Each port supports 10/100 Mbps speed auto negotiation and plug-and-play. Durable for harsh industrial environments and compact for use in control panels. Supports operating temperature -40 ~ 75°C (-40F ~ 167F).
