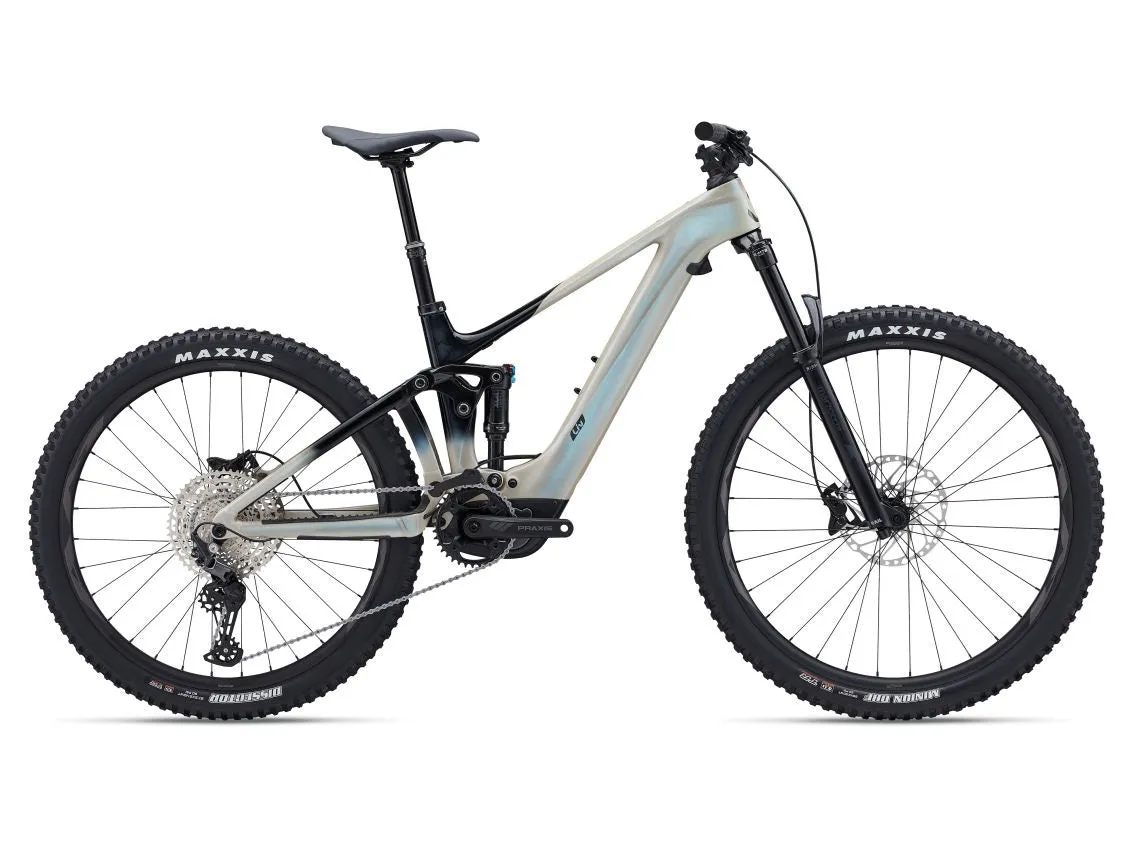

Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Liv Intrigue X Advanced E Elite Full Suspension Mountain E-Bike is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.

Key Performance Factors

• Lightweight and nimble - This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
• Powerful and smooth - A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
• Sleek design - From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Specifications

• Motor - Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology, Class 1, Max Assist Speed: 20MPH
• Controller - Giant RideControl Ergo3, grip integrated remote
• Display - Giant RideControl GO, frame integrated LED consoleOptional wireless ANT display
• Battery - Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant
• EnergyPak - Plus 200 range extender compatible
• Frame - Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
• Fork - Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
• Shock - Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
• Handlebar - Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L)
• Grips - Liv Tactal Pro-E Single Lock-On Grips
• Stem - Giant Contact SL 35
• Seatpost - Tranz-X Rad dropper, 30,9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
• Saddle - Liv Sylvia E
• Shifters - Shimano Deore
• Front Derailleur - MRP HD2 co-moulded chain guide
• Rear Derailleur - Shimano Deore 12-speed, Shadow
• Brakes - Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
• Brake Levers - Shimano Deore, I-spec EV
• Cassette - Shimano CS-M6100-12, 10-51T, 12-speed
• Chain - KMC e.12 Turbo, EcoProteq, e-bike optimized
• Crankset - Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, XS/S:160, M/L:165)
• Bottom Bracket - n/a
• Rims - AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]
• Hubs - Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
• Spokes - Sapim E-Lite [R] Race [F], e-bike optimized
• Tires - Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
• Extras - Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
• Lighting - Optional:- Giant Recon series e-bike lights available and direct connectable
• Weight20.9kg - (46lbs 02oz) - Size (XS)

*Specifications subject to change without notice
