Product Details
＋

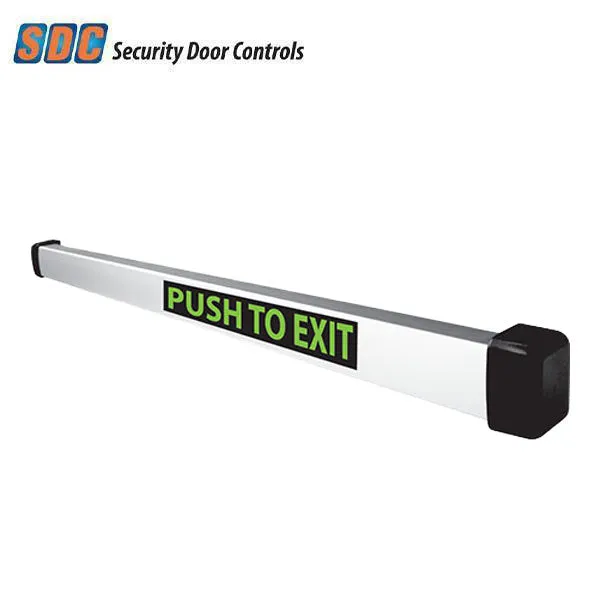

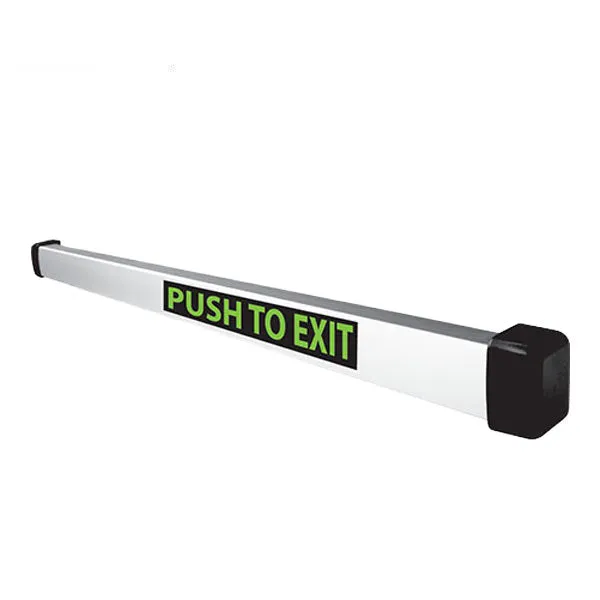

The MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion. The MSB5500W is an economical alternative to sensor activated bars.
Features:
- Water Sealed Switches - The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity. Switch body meets IP67 (IEC 529) requirements.
- Heavy Duty Construction - The MSB550W utilizes heavy-duty aluminum extrusion and rugged end< caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.
- Only 1/8” Total Bar Movement - The MSB550W has a maximum movement of only .125”. Trigger activation to release the electromagnetic lock is quick and quiet.
-
Perfect Companion for Gate Lock Solutions - The MSB550W’s watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.

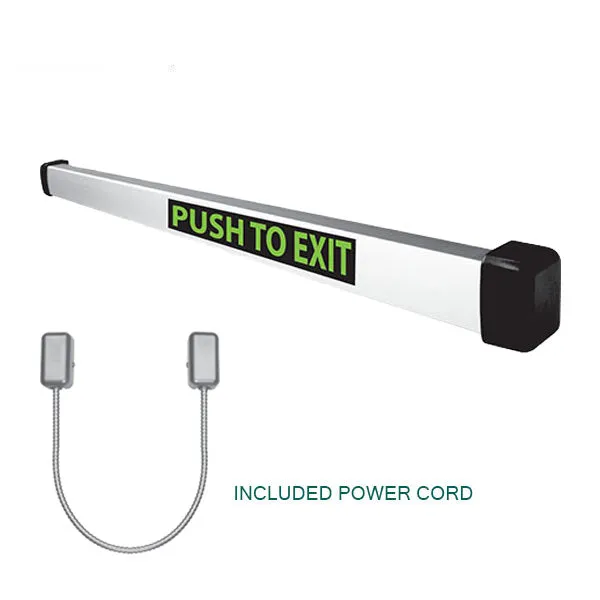

- Includes PT-3 Stainless Steel Shielded Power Cord
| Finish | 628 Anodized Aluminum |
| Physical Appearance | Touch Bar |
| Handing | Non-Handed |
| Device Type | Exit Pushbar Device |
| Device Length | 36 In. |
| Weather Sealed |
IP67 Rated |
| Operating Temperature |
-40°F to 185°F |
| Contact | 2 SPDT, 3 Amp @ 30VDC (RESISTIVE) |
| Manufacturer | Security Door Controls |
Download:
