Product Details
＋

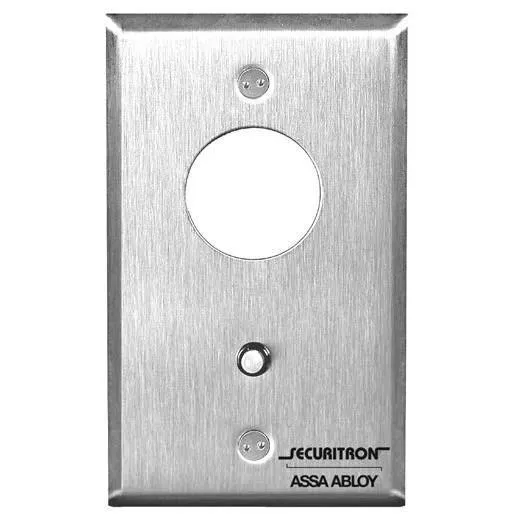

Securitron MKA Alternate Action Keyswitch, Single Gang, SPDT, Less Mortise Cylinder, Stainless Steel
Securitron MK Features
The MK Keyswitch supports electric lock control; alarm panel arming, reset and override when paired with any mortise cylinder 1-1/8" to 1-1/2".
- Standard with 12 or 24VDC bi-color LED
- The backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)
- Additional switch position on the backing bracket allows another switch to be activated by turning the key in the opposite direction
- 5 Amp rated plunger switch
- Includes anti-tamper screws
SPDT: Single Pole - Double Throw (SPDT) Switches with one input and two outputs. When the switch operation occurs, the connection shifts from output A to output B
Alternate Switch: An alternate switch changes state upon activation and does not change back until reactivated.
Product Specs:
| Manufacturer | Securitron |
| SKU | MKA |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | Lifetime |
| Fire Rated | No |
| Burglar Rated | No |
Technical Specs:
| Relay Action | Maintained (AA) |
| Relay Type | SPDT |
| Mounting Plate Size | 1 Gang |
| Product Type | Keyswitches |
